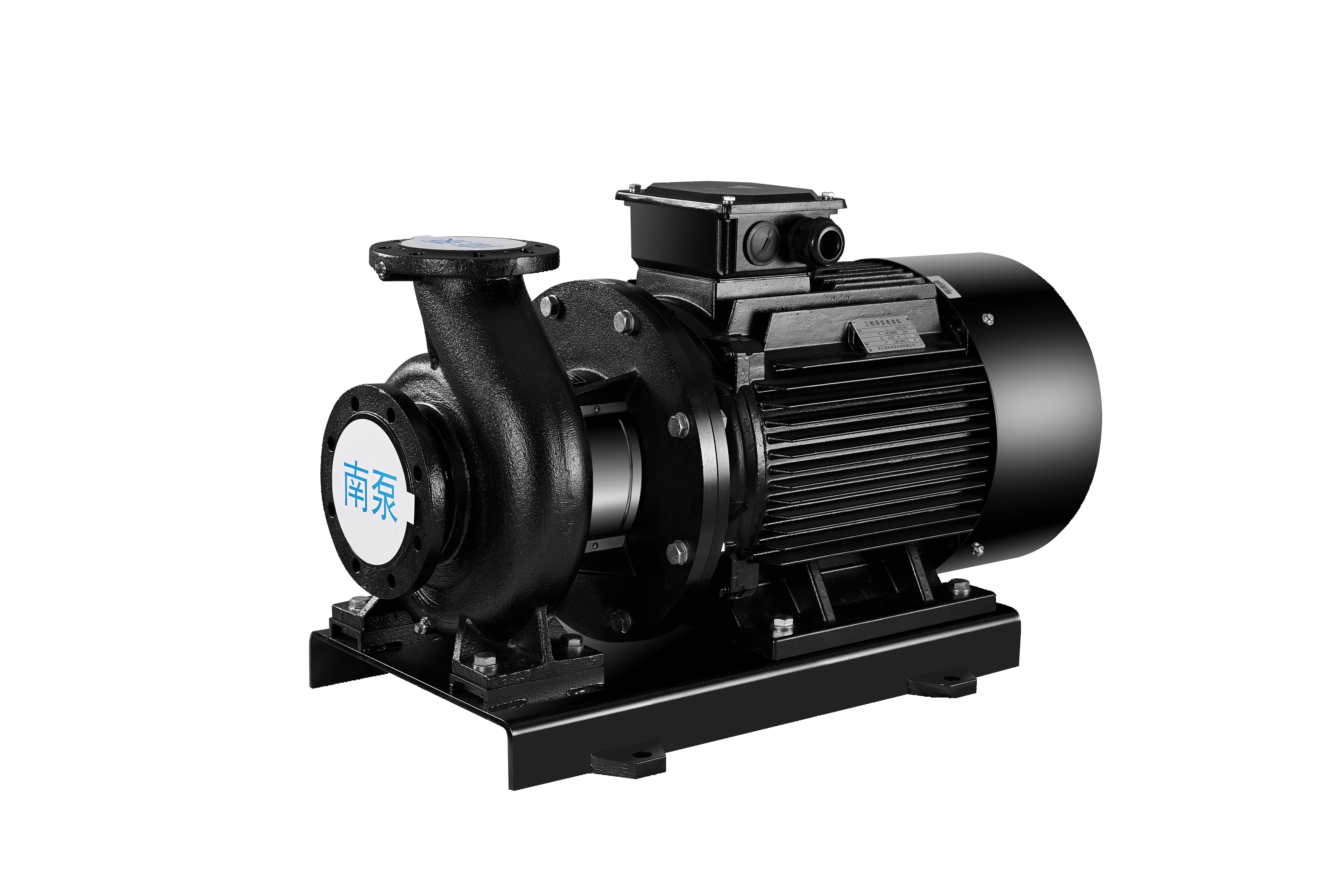

NISO,NIS,NISF End Suction Centrifugal Pump

TECHNICAL DATA

Flow rate: 3m³/h~1900m³/h

Head: 4m~160m

Temp: -15℃~+110℃

Voltage: 220V/380V

Max.Working pressure: 16 bar

Max.Inlet pressure: 6 bar

Max.Power: 250kW

Inlet and outlet diameter:

Inlet diameter: DN50~DN350

Oulet diameter: DN32~DN300

APPLICATIONS

Water treatment systems

HVAC systems

District heating systems

Industrial cooling systems

Firefighting systems

Other pressure boosting systems

MATERIAL

Stainless steel/Cast iron

  • Model:NISO/NIS/NISF
  • Time:2022-09-19
  • Visits:3514

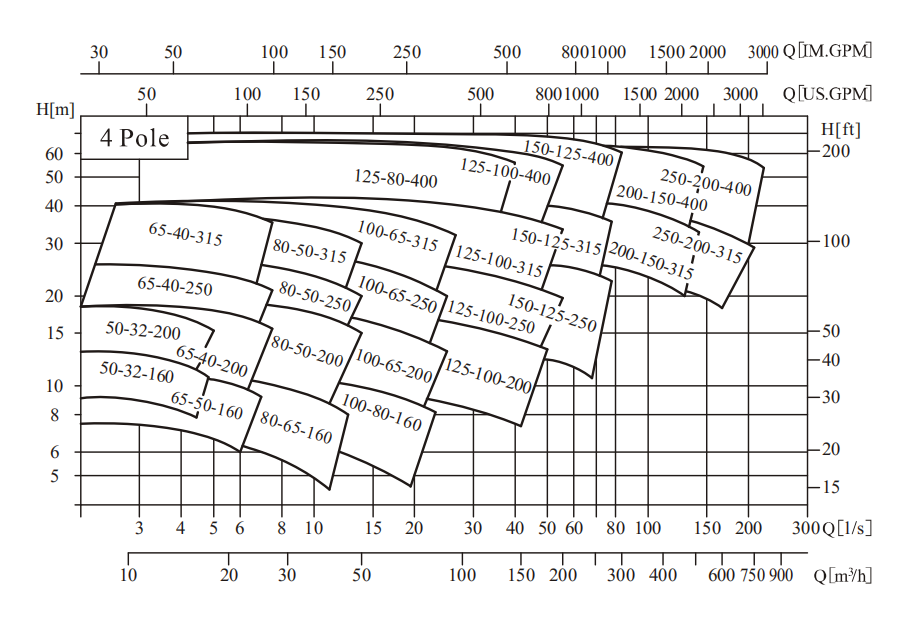

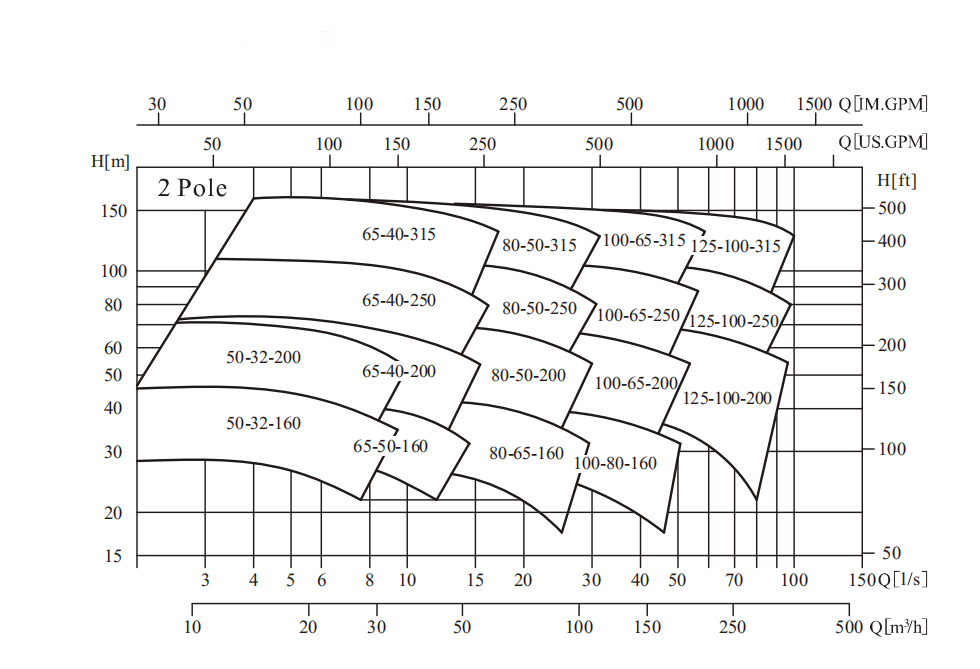

PERFORMANCE
